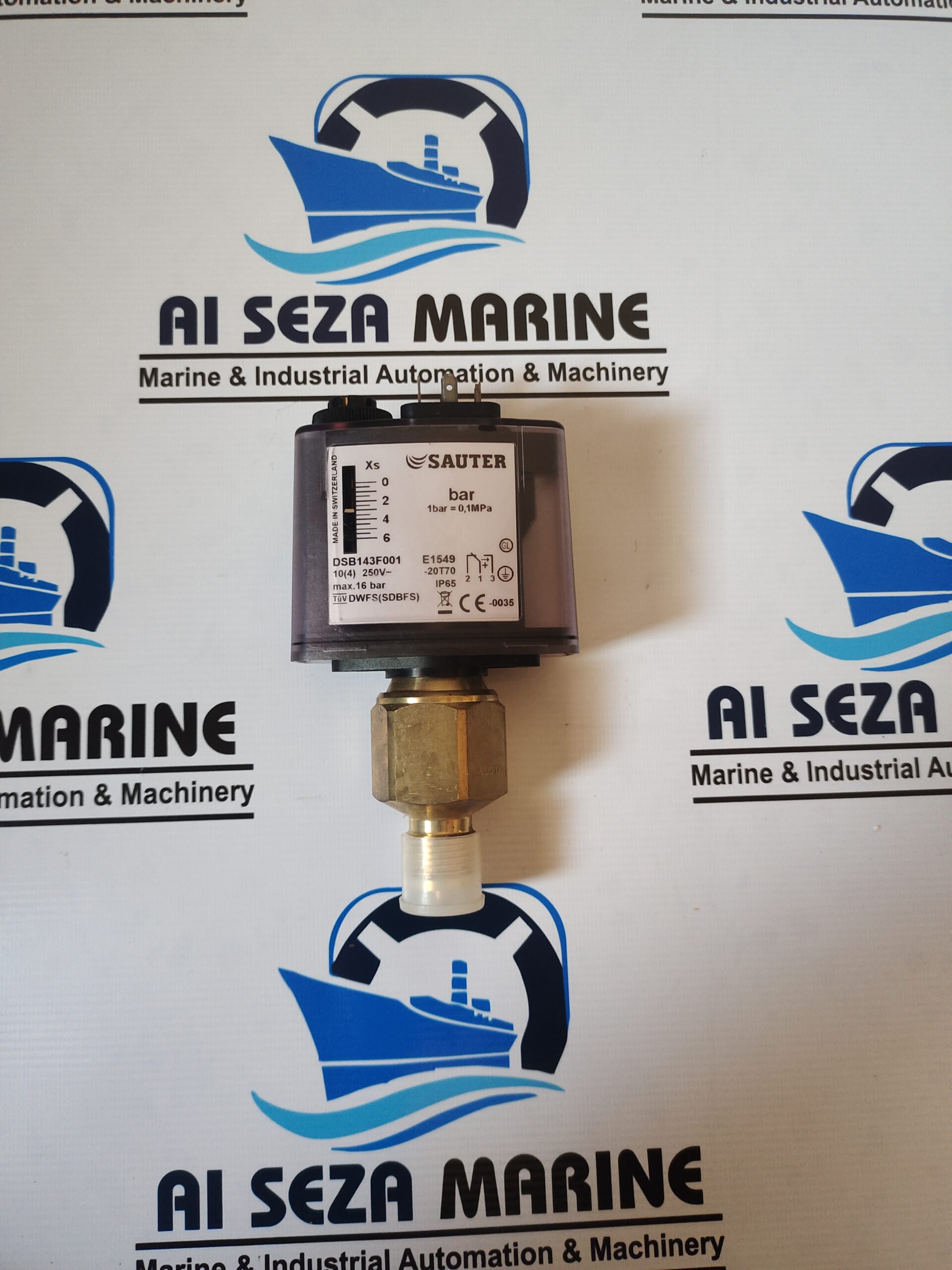

SAUTER DSB143 F001 PRESSURE SWITCH

Description

The Sauter DSB143 F001 is a SIL2-certified industrial pressure switch (0–6 bar range) designed to monitor or control pressure in liquids, gases, and vapours within HVAC and piping systems. It features a brass sensor, \(G\frac{1}{2}”A\) connection, and IP65-rated housing with a transparent cover.

• • Operating Range: 0 to 6 bar
  • Maximum Pressure: 16 bar
  • Switching Difference: Adjustable between 0.3…1.6 bar
  • Pressure Connection: \(G\frac{1}{2}”\) A (brass)
  • Ambient Temperature: -20…70 °C
  • Protection Class: IP65 [1, 2]

• Usage: Ideal for steam, water, and non-aggressive media in pipe or wall-mounted applications.
• Switch Contacts: Includes gold-plated contacts (400 mA/24V) or silver-plated contacts (10(4)A/250V) for versatility.
• Certification: SIL 2-certified per IEC 61508, ensuring high reliability in safety-critical systems.
• Construction: Impact-resistant thermoplastic housing with a sealable cover.
• Functionality: Acts as a monitoring device to protect installations from overpressure.
